Vertical 0.7Mpa 1000kg/H Diesel Oil Gas Steam Boiler

Product Categories
Zhangjiagang Wilford Thermal Co.,Ltd.
Contact Now

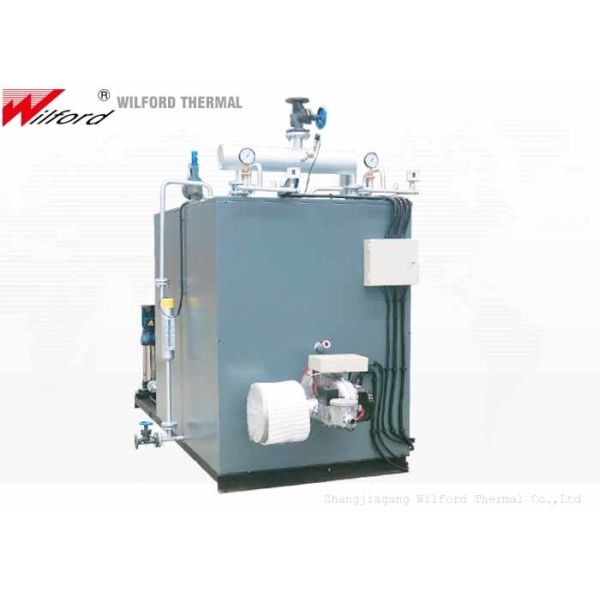

Vertical 0.7Mpa 1000kg/H Diesel Oil Gas Steam Boiler

  • 1
  • 2
  • 3

Brand Name : WILFORD

Model Number : WQ-1000LX

Certification : CE,ASME

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Wooden box package

Rated evaporation : 1000KG

Rated working pressure : 0.7Mpa

Staturated steam temperature : 174℃

Usage : Steam Outputing

Fuel : Oil-fired,Gas-fired,natural gas,lpg

Style : Vertical

Pressure : Low Pressure

Type : Natural Circulation

Product name : Diesel Oil Fired Steam Boiler

Contact Now

1000kg/h Steam Capacity Diesel Oil /Gas Fired Steam Boiler Industry

Product introduction

★ The diesel oil / gas fired steam boiler adopts German high quality pressure gauge .

★ Adopt Imported burner or low nitrogen burner.

★ Horizontal furnace structure, built-in efficient soda separation device.

★ Schneider main electric appliance.

★ LCD display controller, can display the running status, fault alarm, type and other parameters.

★ 1T diesel oil /gas fired steam generator boiler can be exempted from inspection;

★ Optional all-premixed surface burner; Low nitrogen 30 mg; Optional Siemens PLC controller.


Parameter

WQ Vertical Oil(gas)Fired Steam Boiler
Type WQ-500 WQ-500LX WQ-1000 WQ-1000LX
Project Unit
Rated evaporation kg/h 500 1000 500 1000
Rated working pressure MPa 0.8 0.8 0.8 0.8
Staturated steam temperature ℃ 174 174 174 174
Fuel consumption Light diesel oil kg/h 38 38 75 75
Natural gas Nm³/h 15 15 30 30
a Main steam valve diameter DN 40 40 50 50
b Safety valve diameter DN 50 50 50*2 50*2
c Inlet diamater DN 25 25 25 25
d Blowoff Valve diameter DN 25 25 25 25
e Chimney diameter DN 250 250 250 250
Overall size L mm 3000 3000 3600 3600
W mm 1450 1450 1800 1800
H mm 2200 2200 2200 2200
Weight kg 1800 1800 2900 2900


Advantage

  • Small heat loss and high thermal efficiency

  • Multiple chain protection

  • Full combustion, low energy consumption

  • Environmentally friendly boiler, Safety and energy saving.

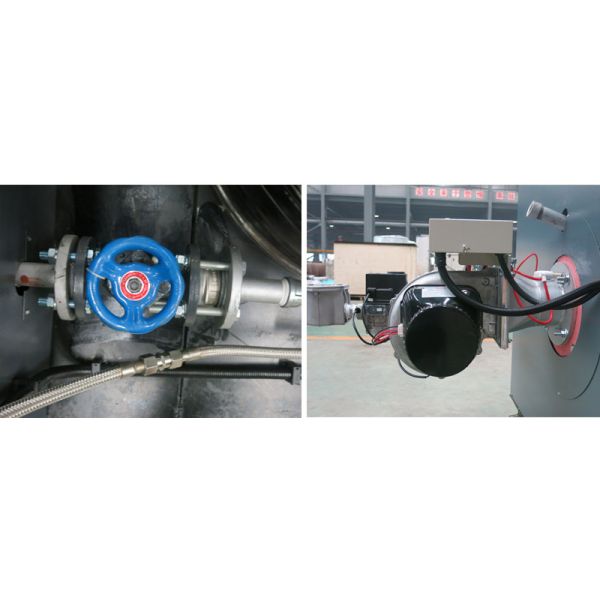

Product detail picture

Vertical 0.7Mpa 1000kg/H Diesel Oil Gas Steam Boiler

Application Scope

  • Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment

  • Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment

  • Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) , (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.

After - sales service

  • Provide on-site reconnaissance and guide the installation.

  • commissioning and personnel training

  • A big team in responsible for the after-sale service and is always at customers’ service.

  • You can get accessories with factory price.

  • We will supply after service 24 hours,customer can contact us any time.

Our warranty is 12 months from the date when the Machine start using in cutomer's factory.
