Automatic Industrial Electric Steam Generator , 316 Stainless Steel Steam Generator

Name: Automatic Industrial Electric Steam Generator 316 Stainless Steel Steam Generator
Brand: WILFORD
Price: 1 USD

Cheap Automatic Industrial Electric Steam Generator , 316 Stainless Steel Steam Generator wholesale

Brand Name : WILFORD

Model Number : LDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Packing in wooden box

Rated evaporation : 25-100kg/h

Input power : 18-72KW

Input current : 27-108A

Main steam valve diameter : 15/25DN

Safety valve diameter : 15/25DN

Water inlet diameter : 15DN

Contact Now

LDR Series Industrial Electric Steam Generator By Best Boiler Company

Product introduction

1 . The boiler has a small water volume and a built-in multiple steam-water separation technology.

2 . All components are selected from international brands such as Schneider and Siemens.

3 . All heating tubes are made of 316 stainless steel seamless tubes.

4 . Each group of heating tubes and separately equipped contactors have high working efficiency.

5 . Each steam generator is equipped with a stainless steel water tank and there is no overflow.

6 . Integrated control panel for fully automatic control and complete protection

Parameter

Model			LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7	LDR0.06-0.7	LDR0.08-0.7	LDR0.1-0.7
Project		UNIT	LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7	LDR0.06-0.7	LDR0.08-0.7	LDR0.1-0.7
Rated evaporation		Kg/h	25	35	50	60	80	100
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170	170
Input power		KW	18	27	36	40	54	72
Input current		A	27	41	54	60	81	108
Rated voltage		V
a Main steam valve diameter		DN	15	15	15	15	15	25
b Safety valve diameter		DN	15	15	15	15	15	25
c Inlet diamater		DN	15	15	15	15	15	15
d Blowoff valve diameter		DN	15	15	15	15	15	20
Overall size	L	mm	680	680	750	750	750	750
	W	mm	600	600	600	680	680	660
	H	mm	950	950	1200	1200	1200	1450
Weight		kg	105	115	130	150	160	180

Feature

Low power, small water volume, free inspection

Built-in automatic water pump

Continuous and uninterrupted work

Use high quality heating tubes and controllers

Operation is fully automatic, safe and efficient

Easy to move and install

Product picture

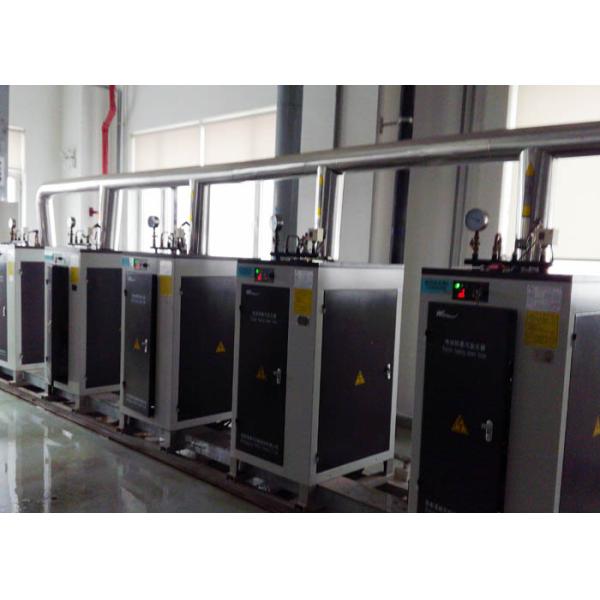

Project case diagram
