Diesel Industrial 170℃ 500kg Oil Fired Steam Boiler

Brand Name : WILFORD

Model Number : WQ-500LX

Certification : CE,ASME

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Wooden box package

Rated evaporation : 500KG

Rated working pressure : 0.7Mpa

Staturated steam temperature : 170℃

Usage : Steam Outputing

Style : Vertical

Fuel : Oil-fired,Gas-fired,natural gas,lpg

Pressure : Low Pressure

Type : Natural Circulation

Contact Now

Industrial Most Efficient Diesel Oill /Natural Gas Fired Steam Boiler


Product introduction

★ Industrial steam boiler adopts German high quality pressure gauge reliable and accurate.

★ Imported gas burner or low nitrogen burner.

★ ultra-safe horizontal furnace structure, built-in efficient soda separation device.

★ Schneider main electric appliance.

★ LCD display controller, can display the running status, fault alarm, type and other parameters.

★ 500KG 1T gas steam generator can be exempted from inspection; Optional all-premixed surface burner; Low nitrogen 30 mg; Optional Siemens PLC controller.



Parameter

WQ Vertical Oil(gas)Fired Steam Boiler
Type WQ-500 WQ-500LX WQ-1000 WQ-1000LX
Project Unit
Rated evaporation kg/h 500 1000 500 1000
Rated working pressure MPa 0.8 0.8 0.8 0.8
Staturated steam temperature ℃ 174 174 174 174
Fuel consumption Light diesel oil kg/h 38 38 75 75
Natural gas Nm³/h 15 15 30 30
a Main steam valve diameter DN 40 40 50 50
b Safety valve diameter DN 50 50 50*2 50*2
c Inlet diamater DN 25 25 25 25
d Blowoff Valve diameter DN 25 25 25 25
e Chimney diameter DN 250 250 250 250
Overall size L mm 3000 3000 3600 3600
W mm 1450 1450 1800 1800
H mm 2200 2200 2200 2200
Weight kg 1800 1800 2900 2900


Advantage

  • Natural circulation

  • Small heat loss and high thermal efficiency

  • Multiple chain protection

  • Full combustion, low energy consumption


Product detail picture

Diesel Industrial 170℃ 500kg Oil Fired Steam Boiler



Application Scope

  • Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.

  • Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipment

  • Biological Chemical Industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment

  • Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) , (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.

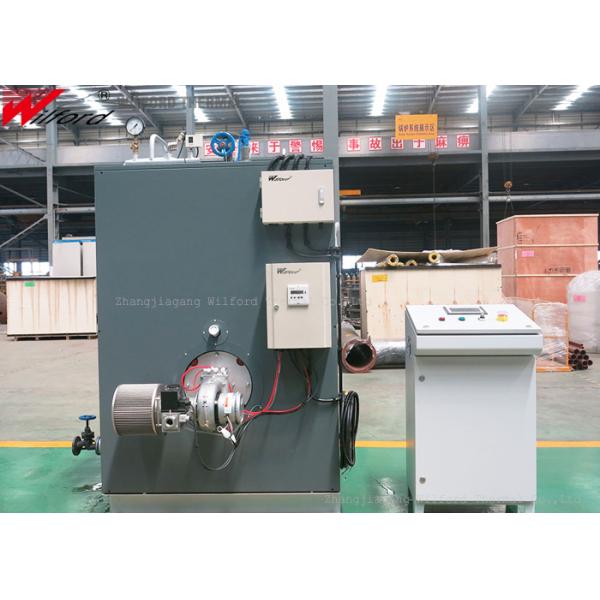

Product picture

Diesel Industrial 170℃ 500kg Oil Fired Steam Boiler
